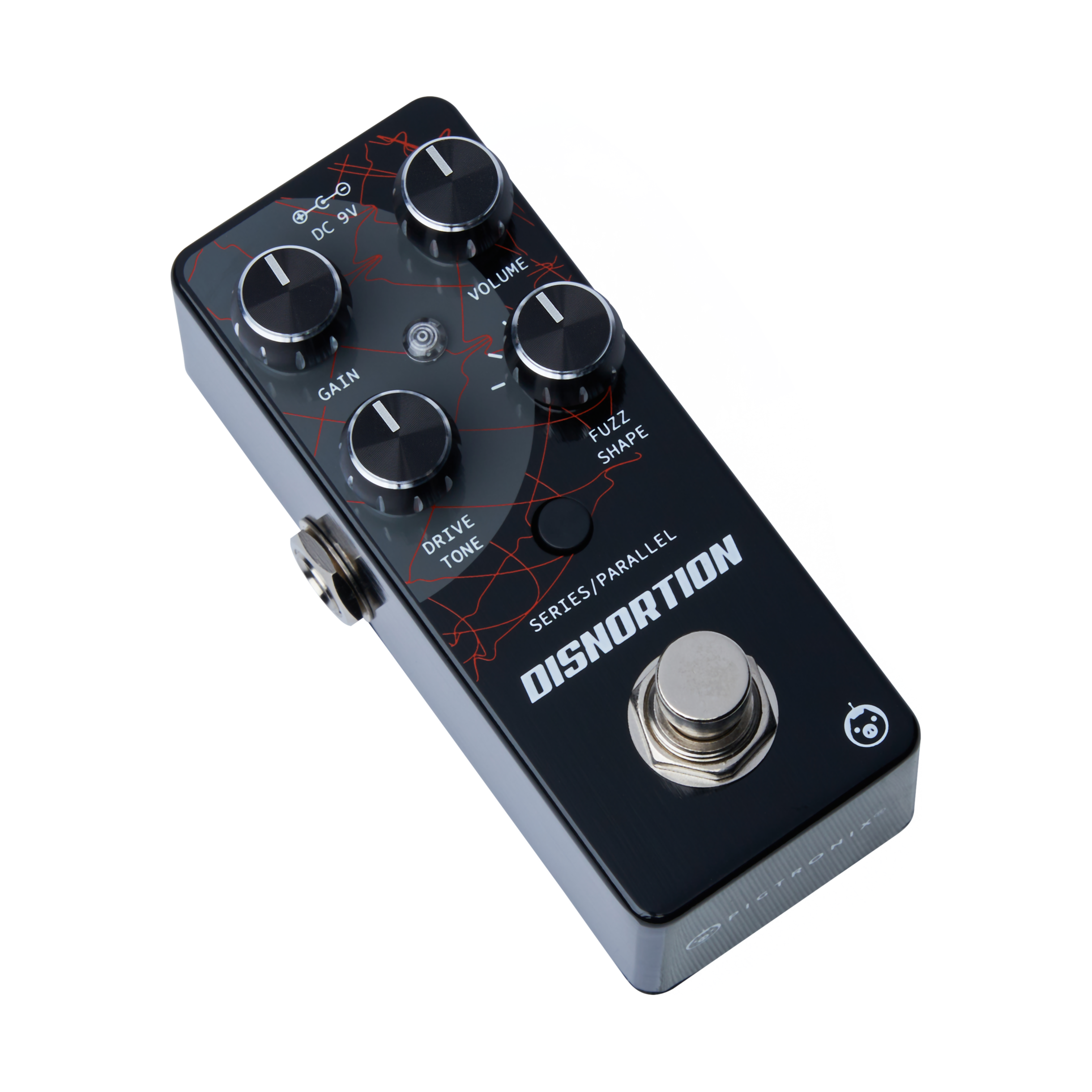

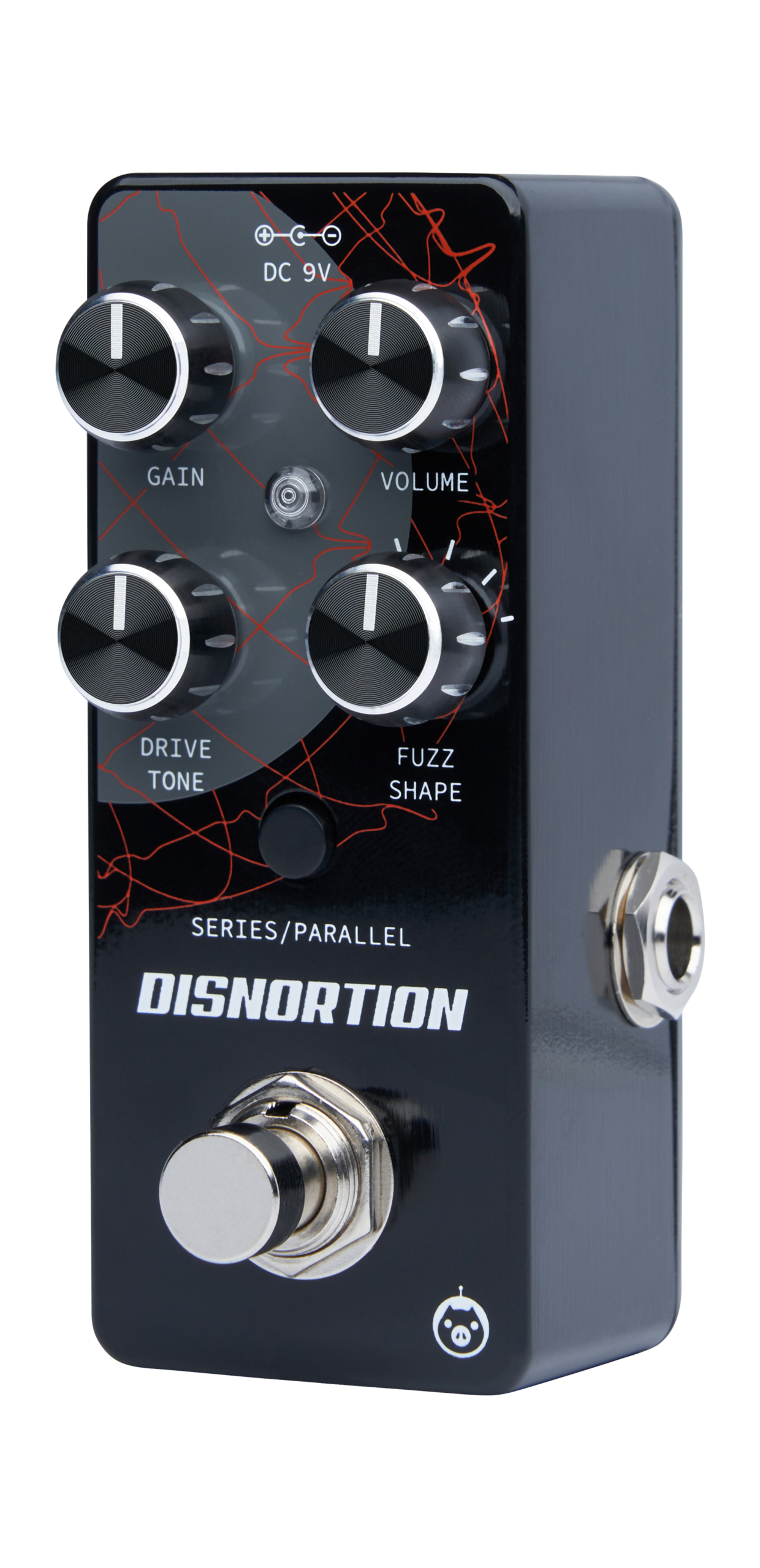

Knob-by-Knob
Volume: Sets the overall output volume.
Gain: Sets the amount of Distortion in both Fuzz and Overdrive stages.
Drive Tone: Sets the cutoff frequency for the low-pass filter on the output of the Overdrive.
Fuzz Shape: Selects between 6 different analog filters on the output of the Fuzz
Series / Parallel: Selects between Overdrive routed before Fuzz or Parallel routing.
Fuzz Architecture
Pigtronix fuzz features a unique diode-clipping architecture designed to deliver compression and controllable feedback while preserving the dynamics of your playing style. Limitless headroom makes the Disnortion compatible with any instrument, from the weakest 60s pawnshop single coils to the most belligerent humbuckers, as well as basses and modern synth rigs.
NO-MUD FUZZ
Sophisticated space pig that he is, Marvin doesnât like mud. So he sorted through the nearly endless array of distorted wastelands littered across the cosmos until he encountered six gloriously fuzzy superplanets. These would become the inspiration for the Fuzz Shapes offered on Disnortionâalways gnarly, never muddy.
Disnortion |
Compare another model
|
|
---|---|---|
MODEL | ||
Model Name | Disnortion | |
SKU | OFM2 | |
Function | Parallel Fuzz and Overdrive | |
Category 1 | Distortion | |
Category 2 | - | |
Expression | - | |
Bypass | True Bypass | |
ELECTRONICS | ||
Voltage | 9-18VDC | |
Current Draw | 100mA | |
Input Impedance | 10M | |
Output Impedance | 150ohms | |
BODY | ||
Length (in) | 1.5 | |
Width (in) | 3.75 | |
Height (in) | 1.75 | |
Weight (lbs) | 0.5 |
