Constellator

Modulated Analog Delay
Download the Manual

$179

SKU#: MAD

mythical tone

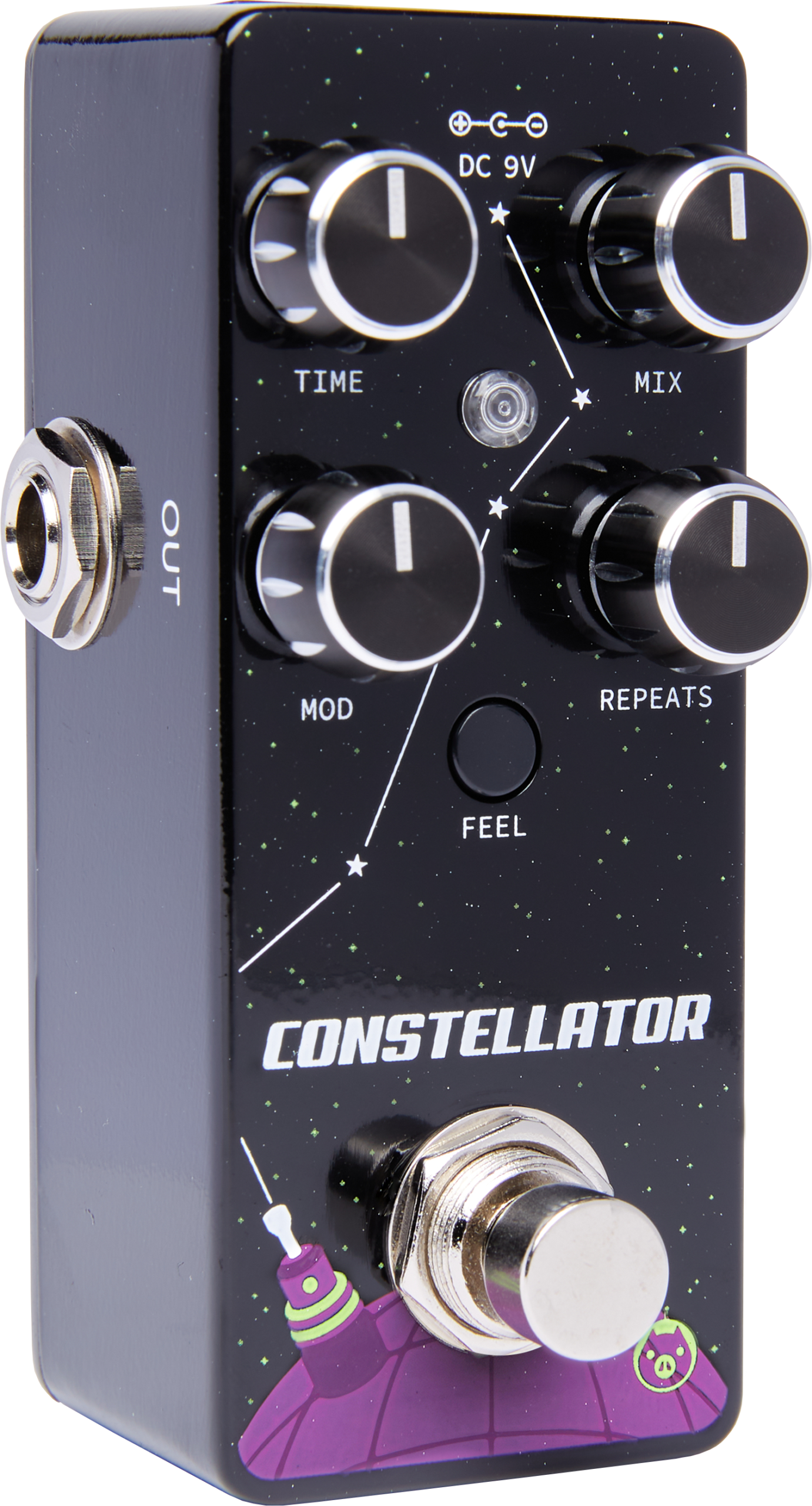

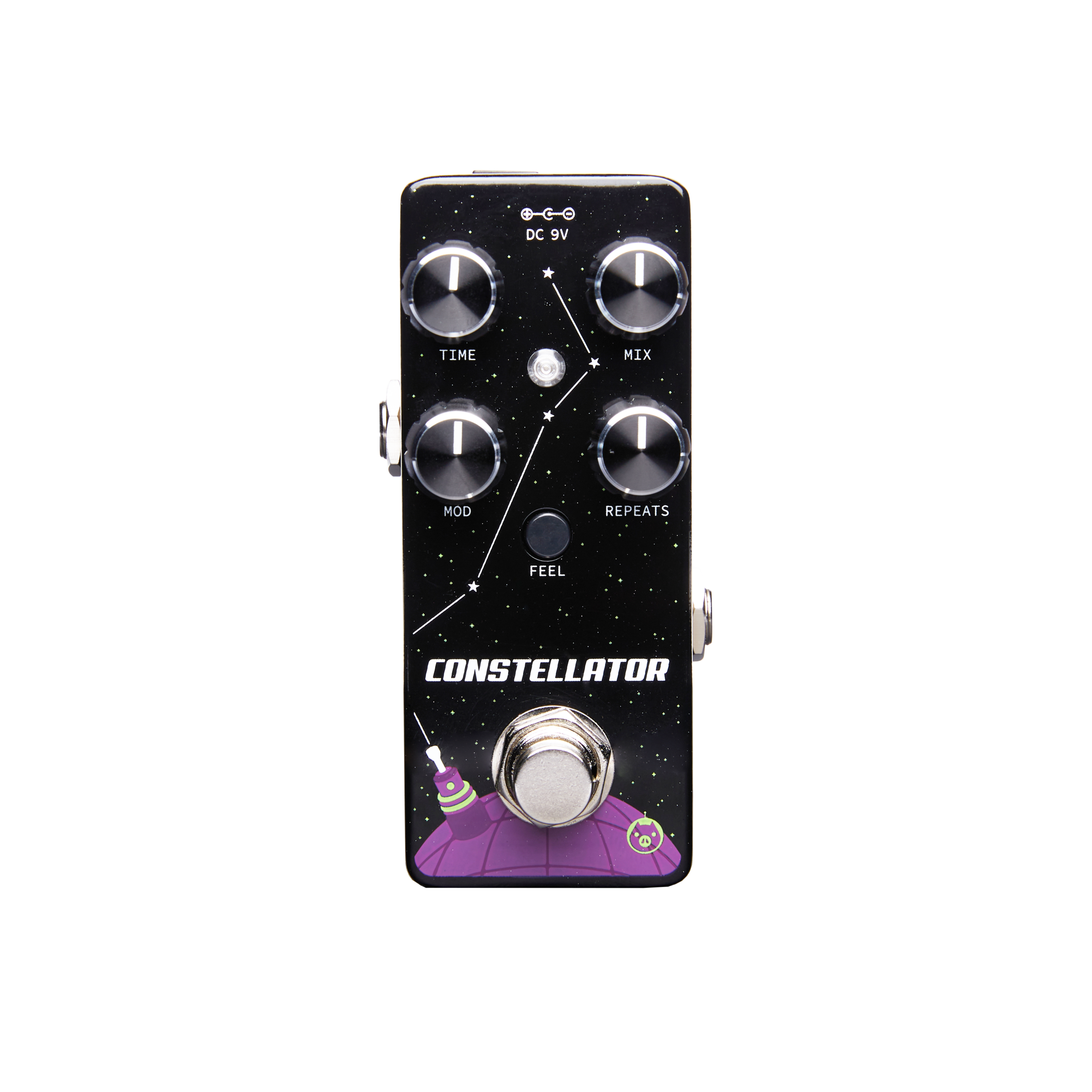

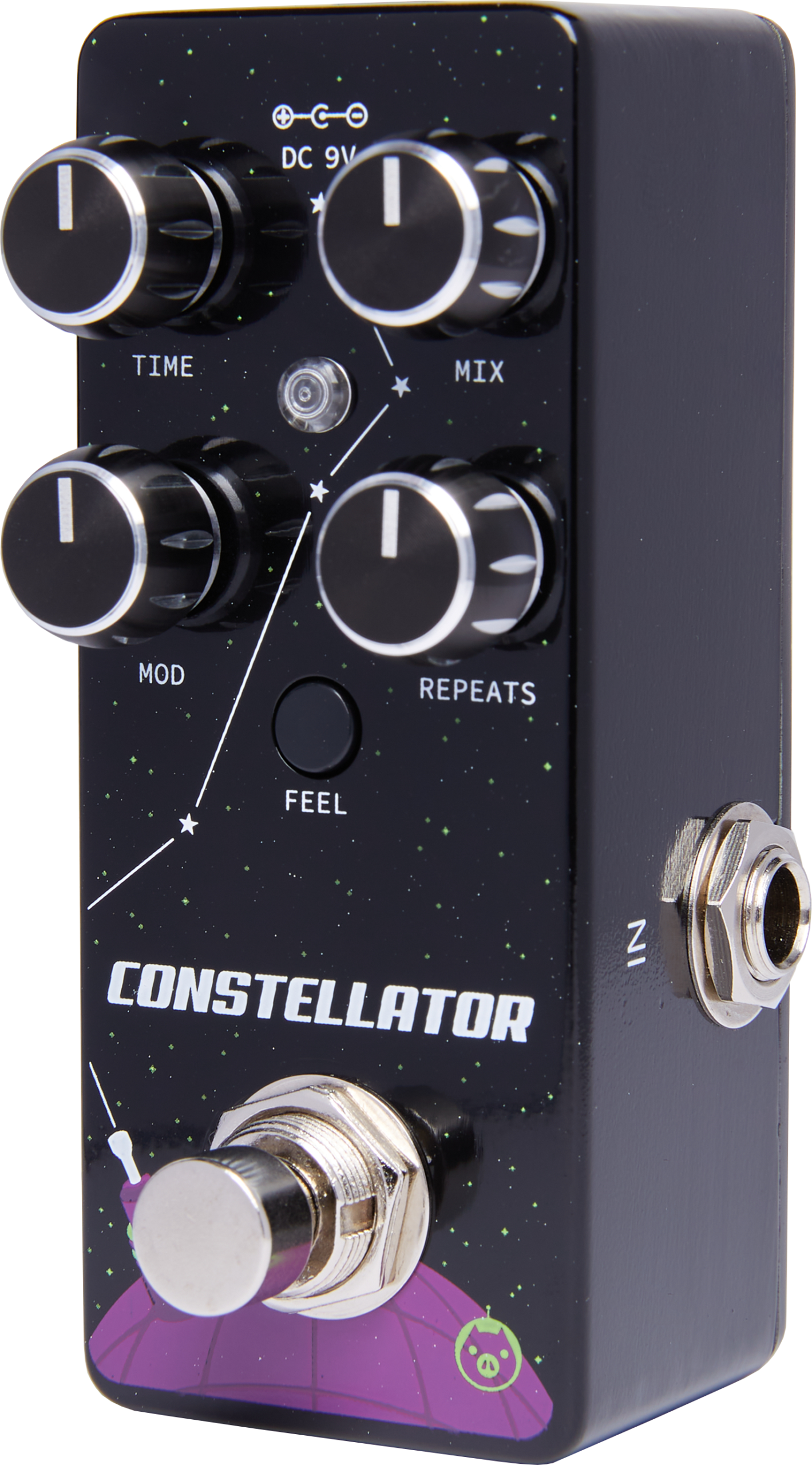

Constellator is an all-analog delay pedal capable of producing up to 600ms of lush echo with adjustable modulation and a comprehensive sound palette. From percussive slapback and doubler sounds to chorused-out, long delays with endless repeats, the Constellator’s MN3005 bucket brigade chips provide superior overall headroom and tape-like saturation when pushed to the limit. The Feel toggle switch adjusts several parameters simultaneously for an additional coloring of LFO modulation. With the Feedback control maxed out, the Constellator is capable of self-oscillation which can be pitched up or down by turning the Time knob. Runs on standard 9VDC.

Features
Features
Specs & Compare
Tone Maps
Videos

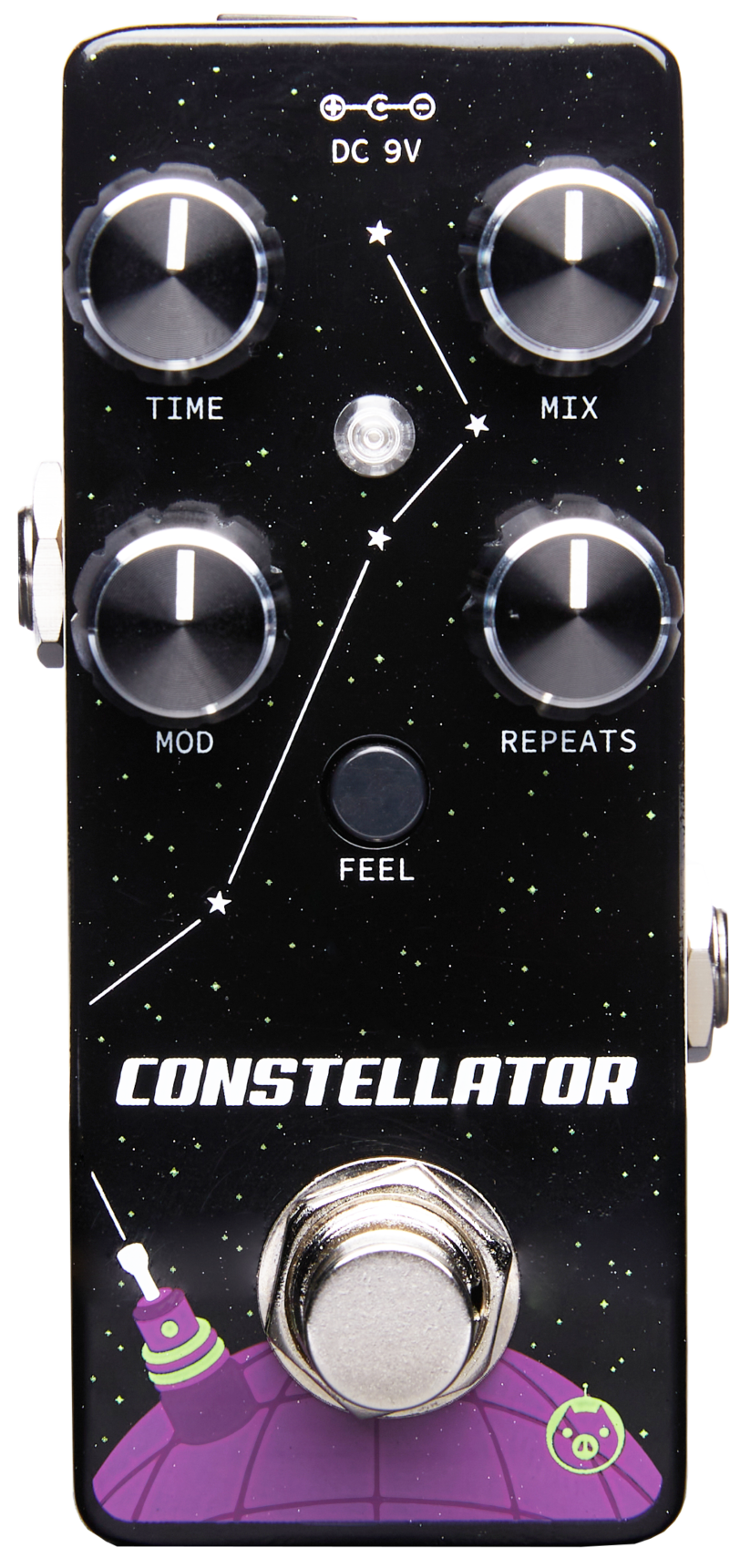

Knob-by-knob

Time: Sets your delay time. Clockwise for slower, counter-clockwise for faster.
Mix: Controls your dry/wet balance.
Mod: Controls the modulation depth. Adds color and warp.
Repeats: Sets the amount of feedback in the delay line.
Feel: Selects between two distinct modulation types. When the switch is pushed in, a chorus effect is selected. When the switch is not pushed in, a vibrato effect is selected.

King of the Bucket Brigades

The pair of analog delay chips used in the Constellator are new production replicas of the mighty Panasonic MN3005 Bucket Brigade Devices (BBD) found in some of the most iconic vintage delay pedals of all time. With 4096 individual “buckets” and +15V power rails, the MN3005 provides the longest possible delay time and most available headroom in an analog delay. Luscious.

Make-Your-Own Myth

Develop shimmering delay lines with crystalline overtones and watch them scatter across the canvas in your mind. Constellate your own myth into being.

Constellator

Compare another model

Model Name
SKU
MAD
Function
Modulated Analog Delay
Category 1
Delay
Category 2
-
Expression
-
Bypass
True Bypass

ELECTRONICS

Voltage
9VDC
Current Draw
100mA
Input Impedance
10M
Output Impedance
150ohms

BODY

Length (in)
1.5
Width (in)
3.75
Height (in)
1.75
Weight (lbs)
0.5
